SKU: MR550EVO.
Category : .

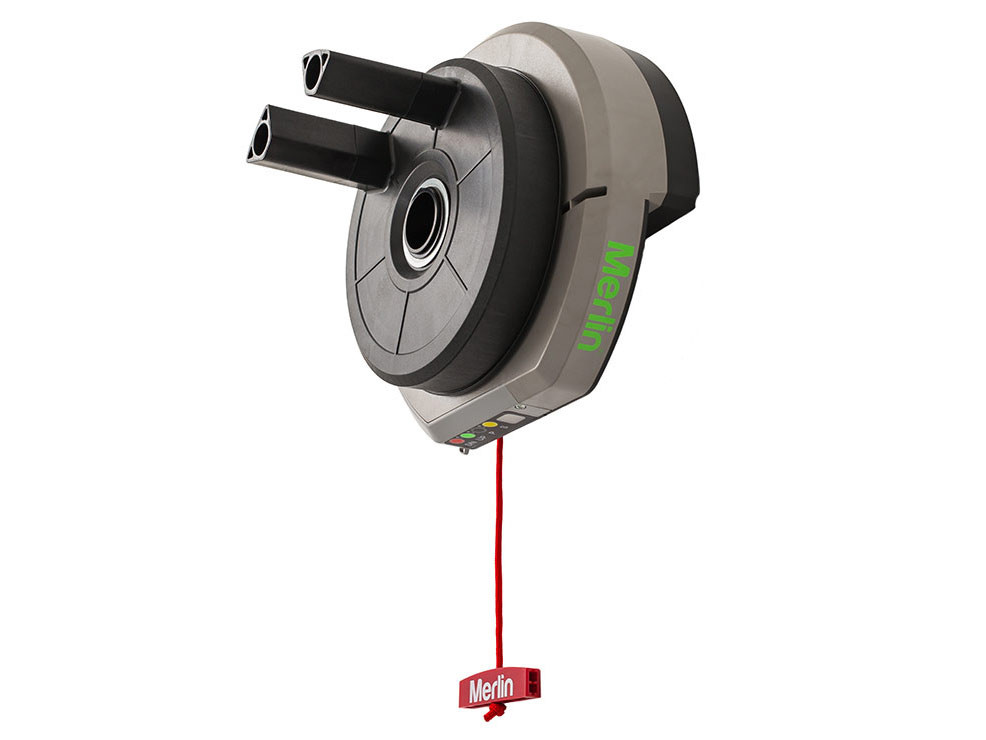

WeatherDrive™ MR550EVO

MR550EVO



Badge
Badge

Description:

* Fully Installed Suggested Retail Price based on a powerpoint being within close proximity, metro install, door moves freely and is in good condition​
* Actual price is provided by the professional dealer and may therefore vary from the suggested retail price.

With a market leading weather resistant IP34 design, slimline design to fit into the tightest of spaces and LED lighting as standard, makes WeatherDrive the perfect option for powering carports and small roller doors.

Compliant to Australian & New Zealand Standards, WeatherDrive comes with a 3 Year Warranty for complete peace of mind and Merlin Security+2.0 encryption rolling code technology for operation under all environment conditions and greater distance than ever before.



  • Product Features
  • Specifications
  • Downloads

General

  • IP34 housing
  • 24V DC motor with thermal overload protection
  • Input voltage: 240V AC
  • Minimum side room 40mm
  • Rated door area up to 15m²
  • Max door weight: up to 100kg
  • Drum rotations: 5.5
  • Max peak pulling force: 500 N
  • 433.30, 434.54, 433.92 MHz AM radio with Security+2.0 encrypted rolling code technology
  • Up to 64 memory registers
  • Courtesy light: LED
  • Noise rating 1M: 51DB
  • Soft start/stop function

Door Specs

  • Maximum lifting under spring tension = 15kgs
  • Suitable for steel spring balanced doors

Door Opening and Closing Times

  • Door opening time: 14 seconds (regular), 18 seconds (slow)
  • Door closing time: 14 seconds (regular), 18 seconds (slow)
  • Based on a 2.3m high door

Door Height

  • Door height: 5.5m, 3.0m, 2.3m
  • Door width: 2.7m, 5.0m, 5.5m
  • Single Dwelling

Optional Accessories
