SKU: MR855EVO.
Category : .

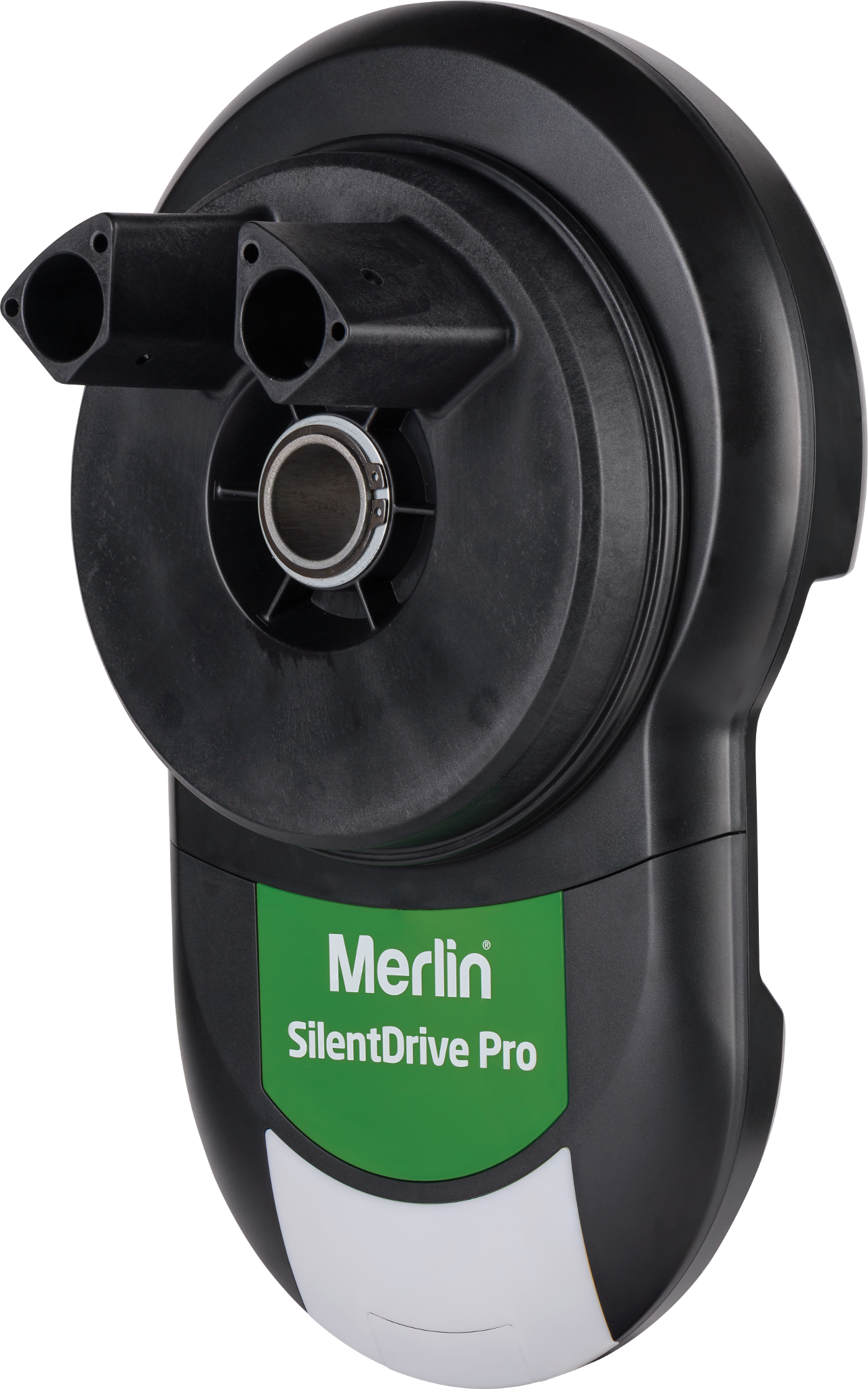

SilentDrive Pro MR855EVO

MR855EVO



Description:

* Fully Installed Suggested Retail Price based on a powerpoint being within close proximity, metro install, door moves freely and is in good condition
* Actual price is provided by the professional dealer and may therefore vary from the suggested retail price.​

The SilentDrive Pro has brighter LED lighting, quieter operation and now includes 2 x premium hand held remotes.

  • Product Features
  • Specifications
  • Downloads

General

  • 24V DC motor with thermal overload protection
  • Input voltage:24V AC
  • Rated door area up to 18m2
  • Drum rotations:4.5
  • Max door weight: up to 120kg
  • Max peak pulling force: 550N
  • Minimum side room 45mm
  • 433.30, 434.54, 433.92 MHz AM radio with Security+2.0 encrypted rolling code technology
  • up to 64 memory registers
  • Courtesy light: LED
  • Noise rating 1M: 57DB

Door Specs

  • Maximum lifting under spring tension = 20kg
  • Suitable for steel spring balanced doors

Door Opening and Closing Times

  • Door opening time: 13 seconds
  • Door closing time: 13 seconds
  • Based on a 2.3m high door

Door Height

  • Door height: 4.5m
  • Door width: 4.0m, 6.0m
  • Single dwelling

Optional Accessories

​​​​​​
