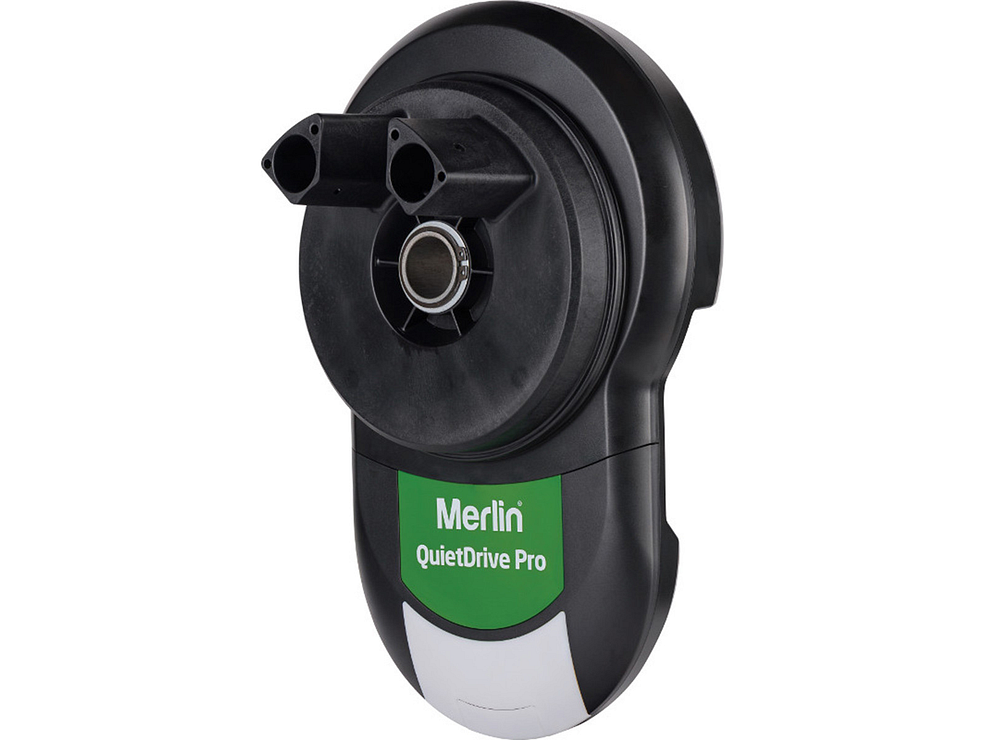

QuietDrive Pro MR655EVO
MR655EVO
Description:
* Fully Installed Suggested Retail Price based on a powerpoint being within close proximity, metro install, door moves freely and is in good condition
* Actual price is provided by the professional dealer and may therefore vary from the suggested retail price.
This reliable performer is a smart choice for new and existing roller garage doors.
- Product Features
- Specifications
- Downloads
General
- 24 DC motor with thermal overload protection
- Input voltage: 240V AC
- Rated door area up to 16.5m2
- Drum rotations: 4.5
- Max Door weight: up to 100kg
- Max peak pulling force: 500N
- Minimum side room 45mm
- 433.30, 434.54, 433.92 MHz AM radio with Security+2.0 encrypted rolling code technology
- Up to 64 memory registers
- Courtesy light: LED
- Noise rating: 1M 57DB
Door Specs
- Maximum lifting under spring tension = 20kg
- Suitable for steel spring balanced doors
Door Opening and Closing Times
- Door opening time: 13 seconds
- Door closing time: 13 seconds
- Based on a 2.3m high door
Door Height
- Door height: 4.5m, 3.0m
- Door width: 3.6m, 5.4m
- Single dwelling
