Roller Shutter PDP

Discover our range of roller door openers below or send us an enquiry to get expert advice based on your specific needs.

Enquire Now

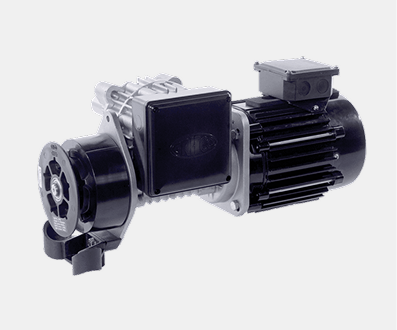

M-Drive

Built to support commercial and industrial applications, our mDrive operator is a workhorse solution for automating spring-balanced roller shutters in environments where safety, reliability, and compliance are key.

Engineered to integrate seamlessly with a wide range of wall control options, the Grifco mDrive opener is available in multiple specialised configurations, including: solenoid brake, dust ignition proof, and flame-proof Exd models that respond to your site’s specific operational needs.

Designed and manufactured locally in Australia and compatible with Grifco’s range of accessories, the mDrive operator is your solution for customising your access needs with safety, efficiency, and convenience in mind. Unlock unparalleled performance and adaptability - upgrade to the Grifco mDrive today.

Safety & Warranty

Warranty: 2 Year

Downloadable Resources

Installation Manual

Data Sheet

Compliance

<div>Appropriate entrapment protection devices must be installed and operational to comply with safety standards and enable the proper functionality of the product. Failure to install these devices may result in non-compliance with safety regulations and could impair product functionality.</div> <div> </div> <div>Other compliance accessories may also be required, which is why it’s important to have your site assessed by an authorised Grifco dealer. This ensures the correct products are selected and that installation meets all compliance requirements.</div>

Technical Specifications

Part No.	kW	Amps	HP	Voltage	Phase	Max. Door Size	IP Rating	Duty	Reversing Starter	Mechanical Logic	Spec Sheet
MH102M	0.75kW	4.35A	1.0Hp	240V	1ph	30m²	IP44	HC	✔	✔

Part No.	kW	Amps	HP	Voltage	Phase	Max. Door Size	IP Rating	Duty	Reversing Starter	Mechanical Logic	Spec Sheet
MH103M	0.75kW	1.95A	1.0Hp	415V	3ph	30m²	IP44	HC	✔	✔

Part No.	kW	Amps	HP	Voltage	Phase	Max. Door Size	IP Rating	Duty	Reversing Starter	Mechanical Logic	Spec Sheet
MH103M8	0.75kW	1.95A	1.0Hp	415V	3ph	36m²	IP55	HC	✔	✔

Part No.	kW	Amps	HP	Voltage	Phase	Max. Door Size	IP Rating	Duty	Reversing Starter	Mechanical Logic	Spec Sheet
MH103MF	0.75kW	1.95A	1.0Hp	415V	3ph	36m²	IP55	HC	✔	✔

Part No.	kW	Amps	HP	Voltage	Phase	Max. Door Size	IP Rating	Duty	Reversing Starter	Mechanical Logic	Spec Sheet
MH103MB	0.75kW	1.95A	1.0Hp	415V	3ph	36m²	IP55	HC	✔	✔

Part No.	kW	Amps	HP	Voltage	Phase	Max. Door Size	IP Rating	Duty	Reversing Starter	Mechanical Logic	Spec Sheet
MH103MD	0.75kW	1.95A	1.0Hp	415V	3ph	36m²	IP66	HC	✔	✔

Part No.	kW	Amps	HP	Voltage	Phase	Max. Door Size	IP Rating	Duty	Reversing Starter	Mechanical Logic	Spec Sheet
ML051M	0.37kW	3.40A	0.5Hp	240V	1ph	18m²	IP44	LC	✔	✔
ML102M	0.75kW	6.0A	1.0Hp	240V	1ph	36m²	IP44	LC	✔	✔

Part No.	kW	Amps	HP	Voltage	Phase	Max. Door Size	IP Rating	Duty	Reversing Starter	Mechanical Logic
ML053M	0.37kW	1.55A	0.5Hp	415V	3ph	18m²	IP44	LC	✔	✔
ML103M	0.75kW	2.30A	1.0Hp	415V	3ph	36m²	IP44	LC	✔	✔
ML153M	1.10kW	2.55A	1.5Hp	415V	3ph	50m²	IP44	LC	✔	✔

★ ★ ★ ★ ★

Tailored for Your Site

Available in specialised configurations including solenoid brake, dust ignition proof, and flame-proof Exd models. The M-Drive adapts to your unique operational requirements.

★ ★ ★ ★ ★

Heavy-Duty Reliability

Purpose-built for demanding commercial and industrial environments, M-Drive delivers consistent, long-lasting performance for spring-balanced roller shutters.

★ ★ ★ ★ ★
