Roller Shutter PDP

Discover our range of roller door openers below or send us an enquiry to get expert advice based on your specific needs.

Enquire Now

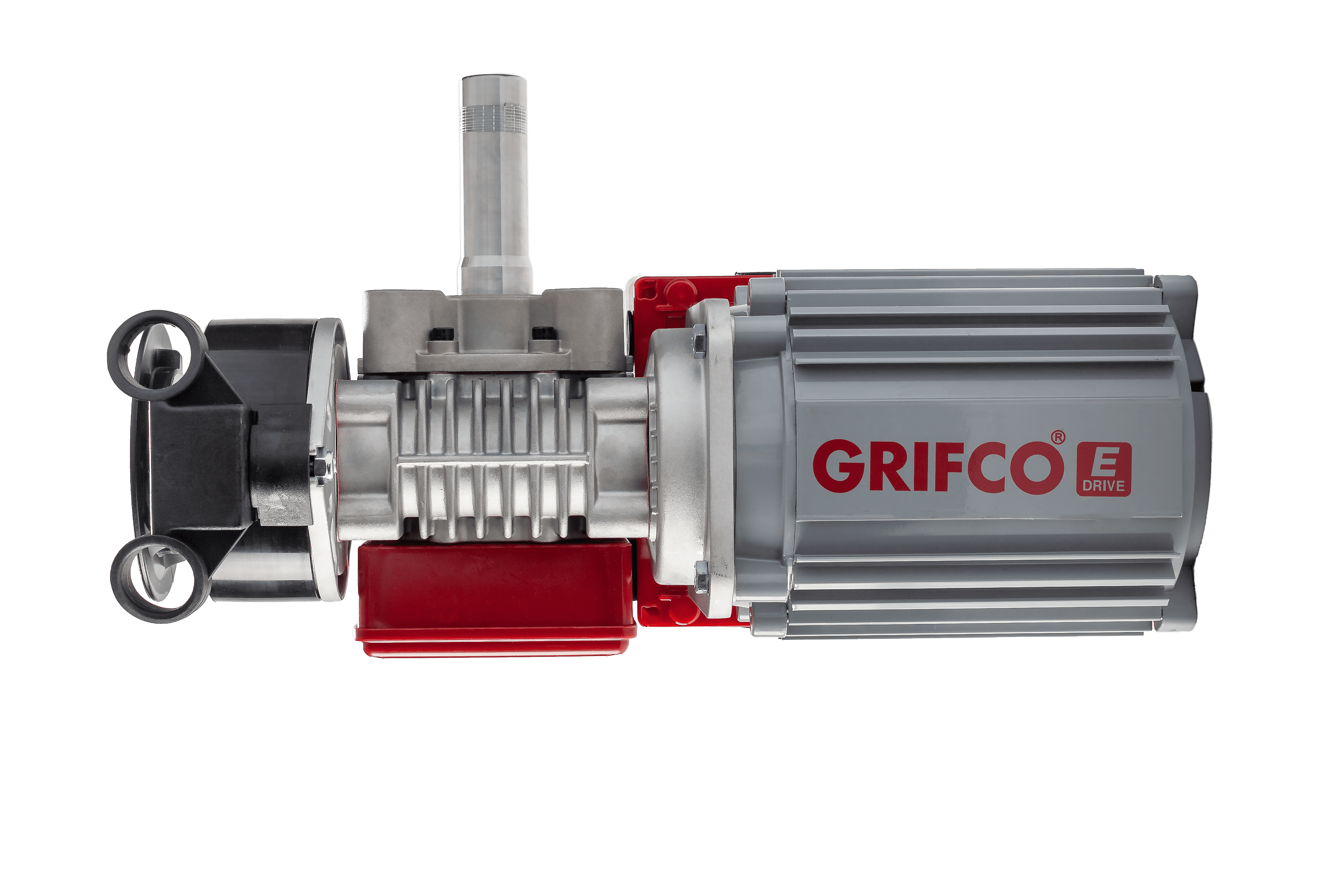

E-Drive

When operational reliability is critical, the Grifco E-Drive Motor delivers dependable performance for spring-balanced roller shutters and grilles in demanding environments. Built for adaptability, the Grifco E-Drive modular operator is engineered to suit various commercial and industrial applications, integrating effortlessly with new or existing infrastructure.

Powered by a robust motor, purpose-designed gearbox, and an intelligent logic system, our Australian-made E-Drive operator ensures smooth, consistent operation for access-reliant facilities. Seamlessly integrating into your infrastructure, its adaptable operation and compatible acccessories ensure it caters to local businesses needing convenient and practical solutions that last for years to come.

Upgrade to the Grifco E-Drive Motor today to improve safety and compliance, whether automating a single entry or scaling up for complex multi-door environments

Connectivity & Features

Connectivity: myQ Compatible

Safety & Warranty

Warranty: 2 Years

Downloadable Resources

Brochure

Data Sheet

Installation Manual

E-Drive C-10A Wall Controller Installation Manual

E-Drive Smoke Baffle Feature (SBF) Manual

E-Drive Vertical Lift Door Opener Kit Manual

E-Drive Logic Conversion Kit Install Manual

E-Drive EB-1 Expansion Board Manual

E-Drive No-Neutral Conversion Kit

Compliance

<p>Appropriate entrapment protection devices must be installed and operational to comply with safety standards and enable the proper functionality of the product. Failure to install these devices may result in non-compliance with safety regulations and could impair product functionality.</p> <p>Other compliance accessories may also be required, which is why it’s important to have your site assessed by an authorised Grifco dealer. This ensures the correct products are selected and that installation meets all compliance requirements.</p>

Technical Specifications

Part No.	kW	Current	HP	Voltage	Phase	Max. Door	IP Rating	Duty	No neutral (N)	Pre-Wired (P)	IP55 (W)	Clutch (C)	Spec Sheet
MH6103	0.75kW	1.95A	1.0Hp	415V	3ph	30m²	IP44	HC	✔		✔
MH6103W	1.10kW	2.90A	1.5Hp	415V	3ph	40m²	IP55	HC	✔		✔

Part No.	kW	Current	HP	Voltage	Phase	Max. Door	IP Rating	Duty	No neutral (N)	Pre-Wired (P)	IP55 (W)	Clutch (C)	Spec Sheet
ML6103RO	0.75kW	2.3A	1.0Hp	415V	3ph	36m²	IP44	LC

Part No.	kW	Current	HP	Voltage	Phase	Max. Door	IP Rating	Duty	No neutral (N)	Pre-Wired (P)	IP55 (W)	Clutch (C)	Spec Sheet
ML6051	0.37kW	3.4A	0.5Hp	240V	1ph	18m²	IP44	LC		✔
MH6102	0.75kW	4.35A	1.0Hp	240V	1ph	30m²	IP44	HC		✔	✔

Part No.	kW	Current	HP	Voltage	Phase	Max. Door	IP Rating	Duty	No neutral (N)	Pre-Wired (P)	IP55 (W)	Clutch (C)	Spec Sheet
ML6102SBF	0.75kW	6.0A	1.0Hp	240V	1ph	36m²	IP44	LC		✔

Part No.	kW	Current	HP	Voltage	Phase	Max. Door	IP Rating	Duty
ML6053	0.37kW	1.55A	0.5Hp	415V	3ph	18m²	IP44	LC
ML6103	0.75kW	2.3A	1.0Hp	415V	3ph	36m²	IP44	LC
ML6153	1.10kW	2.55A	1.5Hp	415V	3ph	50m²	IP44	LC

Part No.	kW	Current	HP	Voltage	Phase	Max. Door	IP Rating	Duty	No neutral (N)	Pre-Wired (P)	IP55 (W)	Clutch (C)	Spec Sheet
ML6103SBF	0.75kW	2.30A	1.0Hp	415V	3ph	36m²	IP44	LC
ML6153SBF	1.10kW	2.90A	1.5Hp	415V	3ph	50m²	IP44	LC

★ ★ ★ ★ ★

Dependable Performance

Engineered for reliability in demanding environments, the Grifco E-Drive delivers consistent operation for spring-balanced roller shutters and grilles.

★ ★ ★ ★ ★

Australian Made

Designed and manufactured locally, the E-Drive offers durable construction and practical solutions tailored to businesses across the Tasman.

★ ★ ★ ★ ★

Scalable & Future-Ready

Perfect for single-entry automation or complex multi-door environments, the E-Drive grows with your facility’s needs.

★ ★ ★ ★ ★

Adaptable Design

The modular operator integrates effortlessly with new or existing infrastructure, making it ideal for a wide range of commercial and industrial applications.

MYQ BENEFITS

A smarter way in. Open for anyone. Close from anywhere. Stay alerted.

Real-time notifications

Get instant alerts whenever your garage or gate opens, closes, or is accidentally left open.

Automate Your Schedule

Never forget to close your garage and gate again. Without touching a button, myQ automatically closes your home‘s entry points and switches myQ lights on at specific times and days. It’s an easy way to keep your home secure - especially when you’re away.

Share Limited Access

Grant temporary or recurring access to up to five trusted people, so they can enter when needed, without sharing your main credentials.

Complete control

Remotely check the status of your automatic garage door opener and gate with myQ connectivity. At the touch of a button, you can open and close your entry points from wherever you are and at any time.

Learn more about myQ
